LONGONI LAMPS

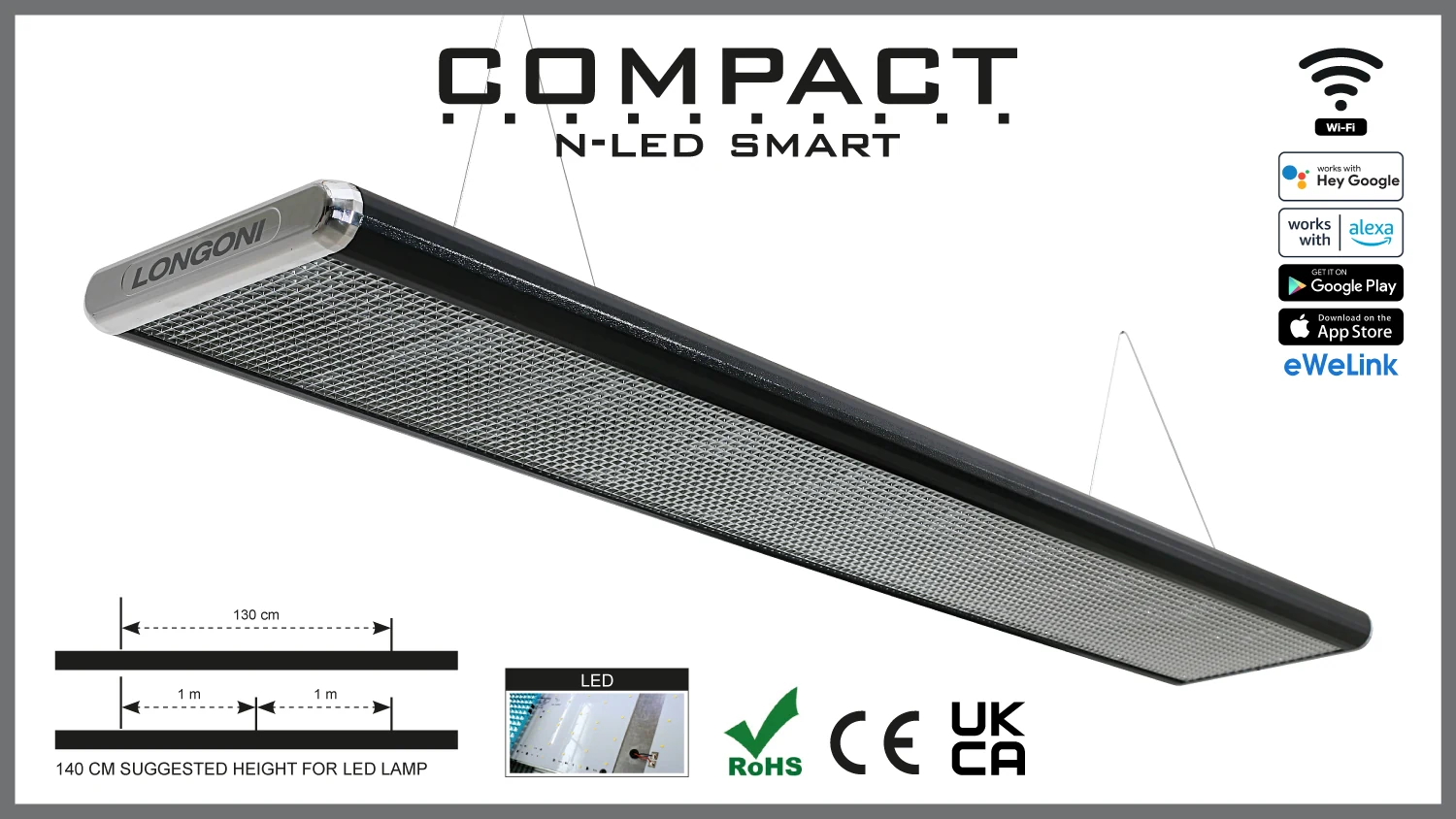

Compact N-Led: the perfect lighting for billiards and beyond. Compact N-Led is the pendant lamp designed by Longoni to deliver optimal lighting for billiard tables across all disciplines. Thanks to its sleek and refined design, it also fits perfectly in other settings, such as meeting rooms with particularly long tables. The Smart version is the most recent and advanced evolution of a project that began in the early 1990s with the Compact model using neon lighting. Today, N-Led features hundreds of high-quality LEDs mounted on aluminum plates for effective heat dissipation, ensuring long life and top-level lighting performance. One of its hallmark features, present since the first models, is the chrome grille, which diffuses the light evenly, avoids glare, and protects the light source from accidental impacts. With the latest LED technology, the light is now even more powerful, crisp, and evenly distributed across the playing surface, enhancing the visual experience. The lamp operates at low voltage and is compliant with CE, UKCA, and RoHS standards. Additionally, all components are easily replaceable by qualified technicians, ensuring easy maintenance and long-term protection of your investment. It is rated energy class A thanks to its low power consumption. The structure is made of highly durable black sheet metal, with the option of custom RAL colors available for minimum orders of 50 units. The Smart version includes a smart switch compatible with Alexa and Google Assistant, allowing for remote control of power on/off. N-Led: light on your game, not in your eyes. IMPORTANT NOTICE The installation of the lamp must be carried out exclusively by qualified personnel. Upon completion, the installer must issue a certificate of correct installation in compliance with current regulations. This is essential to ensure safety, proper operation, and the validity of the product’s certifications. The lamp must be installed at a distance of at least 30 cm from any celyng's element, with adequate ventilation away from potentially flammable elements. Suggested height from slate 140 cm. Smart Version Setup Instructions: Connect the lamp to the 220 Volt power supply. Using your smartphone, connect the device to the local Wi-Fi network (note: 5 GHz networks are not supported). Follow the included instructions to configure the smart switch.

COMPACT N-LED SMART (Required standard WIFI : 2,4 Ghz)

Art lamp sizes weight light K w power m volts/hz lumen pack. size pack. weight suggested for

10315

210x31x6cm

10,9kg

led*

4000K

89W

110-230/50-60

550

223x11x43cm

14,7kg

pool & carom 7' (198x99cm)

8' (224x112cm)

10316

250x31x6cm

15,65kg

led*

4000K

110W

110-230/50-60

550

265x11x43cm

18,7kg

pool & carom 9' (254x127cm)

10317

291x31x6cm

16,6kg

led*

4000K

133W

110-230/50-60

550

304x11x43cm

20kg

grand match carom & 5 birilli 10' (284x142cm)

10318

325x31x6cm

19,3kg

led*

4000K

156W

110-230/50-60

550

337x11x43cm

22,5kg

russian pyramid & snooker

COMPACT N-LED (NO SMART)

Art lamp sizes weight light K w power m volts/hz lumen pack. size pack. weight suggested for

10297

210x31x6cm

10,9kg

led*

4000K

89W

110-230/50-60

550

223x11x43cm

14,7kg

pool & carom 7' (198x99cm)

8' (224x112cm)

10298

250x31x6cm

15,65kg

led*

4000K

110W

110-230/50-60

550

265x11x43cm

18,7kg

pool & carom 9' (254x127cm)

10299

291x31x6cm

16,6kg

led*

4000K

133W

110-230/50-60

550

304x11x43cm

20kg

grand match carom & 5 birilli 10' (284x142cm)

10300

325x31x6cm

19,3kg

led*

4000K

156W

110-230/50-60

550

337x11x43cm

22,5kg

russian pyramid & snooker

* TESTED ON A POOL TABLE WITH A LED LAMP AT 140 CM FROM SLATE

Compact N-Led: the perfect lighting for billiards and beyond. Compact N-Led is the pendant lamp designed by Longoni to deliver optimal lighting for billiard tables across all disciplines. Thanks to its sleek and refined design, it also fits perfectly in other settings, such as meeting rooms with particularly long tables. The Smart version is the most recent and advanced evolution of a project that began in the early 1990s with the Compact model using neon lighting. Today, N-Led features hundreds of high-quality LEDs mounted on aluminum plates for effective heat dissipation, ensuring long life and top-level lighting performance. One of its hallmark features, present since the first models, is the chrome grille, which diffuses the light evenly, avoids glare, and protects the light source from accidental impacts. With the latest LED technology, the light is now even more powerful, crisp, and evenly distributed across the playing surface, enhancing the visual experience. The lamp operates at low voltage and is compliant with CE, UKCA, and RoHS standards. Additionally, all components are easily replaceable by qualified technicians, ensuring easy maintenance and long-term protection of your investment. It is rated energy class A thanks to its low power consumption. The structure is made of highly durable black sheet metal, with the option of custom RAL colors available for minimum orders of 50 units. The Smart version includes a smart switch compatible with Alexa and Google Assistant, allowing for remote control of power on/off. N-Led: light on your game, not in your eyes. IMPORTANT NOTICE The installation of the lamp must be carried out exclusively by qualified personnel. Upon completion, the installer must issue a certificate of correct installation in compliance with current regulations. This is essential to ensure safety, proper operation, and the validity of the product’s certifications. The lamp must be installed at a distance of at least 30 cm from any celyng's element, with adequate ventilation away from potentially flammable elements. Suggested height from slate 140 cm. Smart Version Setup Instructions: Connect the lamp to the 220 Volt power supply. Using your smartphone, connect the device to the local Wi-Fi network (note: 5 GHz networks are not supported). Follow the included instructions to configure the smart switch.

COMPACT N-LED SMART (Required standard WIFI : 2,4 Ghz)

Art lamp sizes weight light K w power m volts/hz lumen pack. size pack. weight suggested for

10315

210x31x6cm

10,9kg

led*

4000K

89W

110-230/50-60

550

223x11x43cm

14,7kg

pool & carom 7' (198x99cm)

8' (224x112cm)

10316

250x31x6cm

15,65kg

led*

4000K

110W

110-230/50-60

550

265x11x43cm

18,7kg

pool & carom 9' (254x127cm)

10317

291x31x6cm

16,6kg

led*

4000K

133W

110-230/50-60

550

304x11x43cm

20kg

grand match carom & 5 birilli 10' (284x142cm)

10318

325x31x6cm

19,3kg

led*

4000K

156W

110-230/50-60

550

337x11x43cm

22,5kg

russian pyramid & snooker

COMPACT N-LED (NO SMART)

Art lamp sizes weight light K w power m volts/hz lumen pack. size pack. weight suggested for

10297

210x31x6cm

10,9kg

led*

4000K

89W

110-230/50-60

550

223x11x43cm

14,7kg

pool & carom 7' (198x99cm)

8' (224x112cm)

10298

250x31x6cm

15,65kg

led*

4000K

110W

110-230/50-60

550

265x11x43cm

18,7kg

pool & carom 9' (254x127cm)

10299

291x31x6cm

16,6kg

led*

4000K

133W

110-230/50-60

550

304x11x43cm

20kg

grand match carom & 5 birilli 10' (284x142cm)

10300

325x31x6cm

19,3kg

led*

4000K

156W

110-230/50-60

550

337x11x43cm

22,5kg

russian pyramid & snooker

* TESTED ON A POOL TABLE WITH A LED LAMP AT 140 CM FROM SLATE

Detalles técnicos

Peso	light
Aviso	The installation of the lamp must be carried out exclusively by qualified personnel. Upon completion, the installer must issue a certificate of correct installation in compliance with current regulations. This is essential to ensure safety, proper operation, and the validity of the product’s certifications.
